Help Needed – Wiring diagram for ingersoll rand 7.5 caps

We have ordered replacement start capacitors for our Ingersoll Rand 7.5 compressor motor.

The problem is that when we got the motor, the capacitors were already disconnected from each other and the motor. I have looked everywhere I could think of online and rephrased my search as many ways I know how but no luck so far with how to install them back.

Please help!!!

(See image further along the page – moderator)

_____________________

Ingersoll Rand 7.5 HP capacitors
by: Doug in s.d.ca

What is the motor model number, please?


IR 2475 start/stop capacitors
by: Sherry

We are having the same problem our model 2475…please help

___________________

CAPS vs capacitors
by: Doug in s.d.ca

People:

An individual unit may have different caps due to using a comparable, but different motor.

You need to ID your motor.

_______________________________

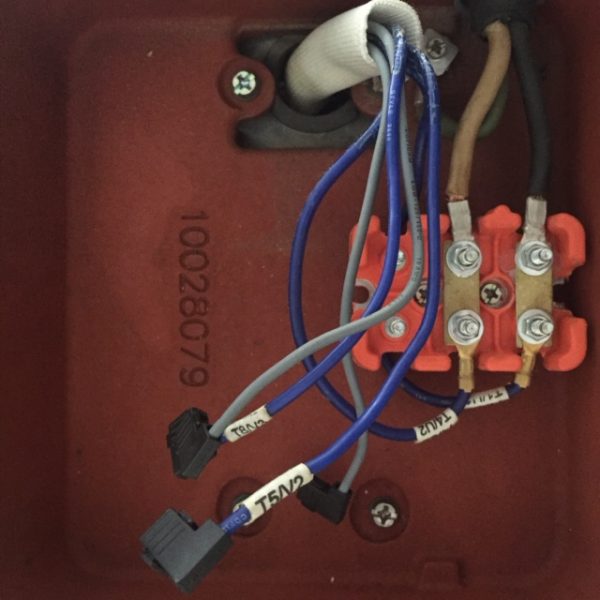

Wiring diagram for Ingersoll Rand 7.5 HP air compressor caps
Wiring diagram for Ingersoll Rand 7.5 HP air compressor caps – Photo: cheyenneresourcesinc.com

A wiring image has been added
by: Bill

Thanks to Sherry of cheyenneresourcesinc.com for the photo of the wiring. It has been added above.

Subscribe to this page / comment / post
Notify of
guest
guest
4 Comments
Inline Feedbacks
View all comments
Jackson
Jackson
September 25, 2020 7:56 pm

i have the same issue my IR motor part number is 32309437 also has this
# on it 4014362
both starter and run canisters are removed

Thanks, Jackson Rogers

FDNY retired from WTC on 9/11

Reply
View Replies (3)
