How to dismount a scored Crank on a Craftsman air compressor

Published Categorized as Craftsman 1 Comment on How to dismount a scored Crank on a Craftsman air compressor

Hey! This site is reader-supported and we earn commissions if you purchase products from retailers after clicking on a link from our site.

I have a scored crank on my 919.165600 – how to dismount it from the motor?

by Rick
(Dansville, NY)

I have a Craftsman 919,165600 6.5hp upright oil-less compressor with a problem. After about 2 years and 60hrs. of operation it failed.

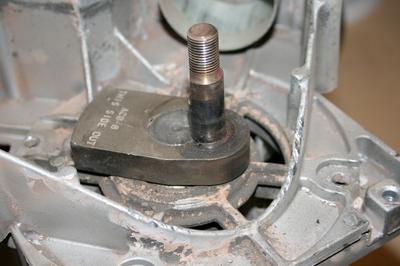

Motor And Crank
Motor And Crank

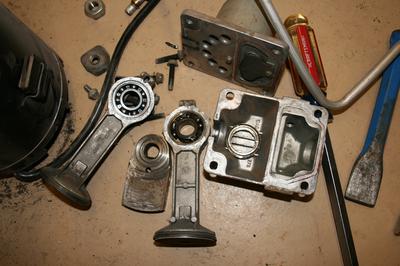

Damaged Parts
Damaged Parts

Pulling it apart revealed the end bolt on the crank backed off resulting in destroyed big end bearings and spacers, which then resulted in a scored crank. I would like to refurbish or replace the crank but how in heck does it come off the motor shaft?

Any help appreciated.

Rick

_________________________________________

Scored crank – how to dismount from motor – the answer

by Rick
(Dansville, NY)

Motor Shaft
Motor Shaft

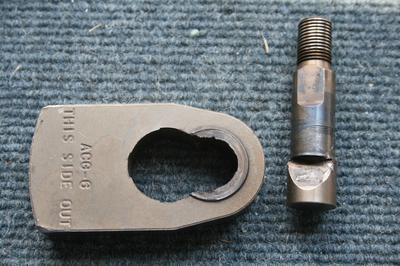

Ecentric And Shaft
Ecentric And Shaft

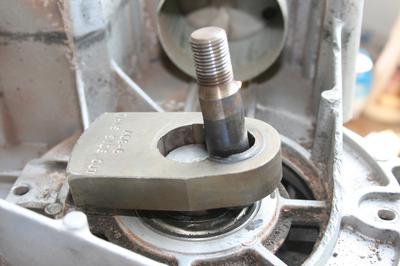

Parts Loosesly Assembled
Parts Loosesly Assembled

See the original post at the start of this thread.

The motor shaft is not tapered. The eccentric, flyweights and the whole mess are held on by the crank pin being wedged into a notch in the motor shaft.

Hopefully these pictures will help the next person.

_______________________________

The answer
by: Rick

Well, it wasn’t what we thought but acted like it was a press fit worked.

The motor shaft is not tapered but keyed and the crank actually fits into this.

The eccentric locks the parts together, which the piston/bearing stack locks in place via the end shaft bolt. Easier to see in pictures.


New comment? New question? Please add it here along with photos to help others help you with your compressor and equipment problem!

Subscribe
Notify of
1 Comment
Inline Feedbacks
View all comments

I have a Craftsman 6 HP 33 gallon horizontal compressor model 919152930, and had run into the same roadblock. I also thought that the eccentric crank pin and counterweight were press fitted somehow onto the motor shaft. After pondering and researching for two days I finally managed to put together the exact required keywords to stumble upon your post in the search engines. Your pics have been invaluable in helping me understand how it goes together and comes apart. Thanks for posting them.
