Wiring a 5 HP Quincy air compressor motor

Published Categorized as Air Compressor Wiring Issues, Quincy No Comments on Wiring a 5 HP Quincy air compressor motor

by Pat McMurray
(Spokane, WA USA)

It’s about a 40 year old Quincy two stage. Previous owner said it ran fine.

Quincy
Quincy
How To Wire A 5hp 220v Motor 21406714
How To Wire A 5hp 220v Motor 21406714
How To Wire A 5hp 220v Motor 21406715
How To Wire A 5hp 220v Motor 21406715

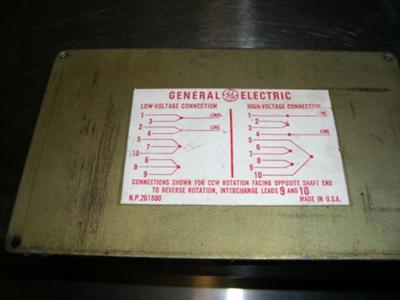

Should be a capacitor start, capacitor run motor (written on a cover plate.)

Please, how do I wire? Thanks.
