by Jay Levitt
(Cambridge, MA)

The short version: The black reset/test button inside the pressure switch stays in the “off” position.

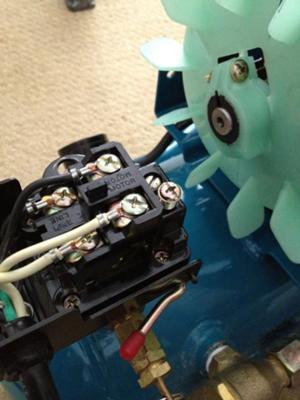

Makita MAC700/Sunny pressure switch
Makita MAC700/Sunny pressure switch
Makita MAC700/Sunny pressure switch
Makita Mac700/sunny Pressure Switch
Makita Mac700/sunny Pressure Switch

Long version: The compressor won’t turn on; circuit breaker is fine, verified no power to the motor with a multimeter. The pressure switch is a Sunny SP-204/E211960/EE252248, which looks suspiciously like a Lefoo LF10-4H.

The “motor” terminals are not connecting to the “line” terminals; they stay open. This seems to be a purely mechanical problem in the pressure switch; it happens with no air in the tank or lines, and no power.

When I remove the cover of the pressure switch, there’s a black plastic button between the motor terminals – the Lefoo manual says it’s a test button. When I turn the main power switch to “on”, and press the black button, it pushes the switch contacts down to make contact. But when I turn the power switch “off”, the black button pops back up, and the contacts spring open again and stay there.

I know pressure switches fail eventually, and the unit’s 7 years old, but this is a little baffling – the only time I’ve touched the compressor was to borrow the air-side regulator adapter nipple (and replace it, of course). I can’t imagine how that’d cause the pressure switch to start mechanically failing, and before I replace the switch, I’m wondering if there’s something obvious I’m missing. I’ve played with the cut-in/out and the cut-out screws, I’ve removed and reattached the unload cable, I’ve tried wiggling various parts of the contact springs… any ideas?
________________
If there is no pressure in the tank, and you plug the compressor in, power should flow through the switch to the motor circuit. If that does not happen, the pressure switch is pooched.

To my knowledge there are no user serviceable parts or repairs reasonably possible for a low cost pressure switch.

It were my compressor, I’d find a pressure switch that fits the footprint, including operating the unloader, and replace the old one.

______________________

Same problem
by: JeffH

I wish there was a response because I have the same problem. I’m thinking I’ll rewire to bypass the pressure switch to see what will happen.

_______________________

My earlier response stands.
by: Bill

If there is no pressure in the tank, and you plug the compressor in, power should flow through the switch to the motor circuit. If that does not happen, the pressure switch is pooched.

To my knowledge there are no user serviceable parts or repairs reasonably possible for a low cost pressure switch.

It were my compressor, I’d find a pressure switch that fits the footprint, including operating the unloader, and replace the old one.

______________________

Pooched pressure switch
by: greg

Just a friendly word of advice… don’t bother taking apart the switch like I did because its virtually impossible to reassemble it. I had a leak that I thought was in the diaphragm and when I pulled the four screws holding the switch to the mount it flew apart and even after i figured out how to reassemble it it couldn’t be done. Even by all the kings men.

_____________________

Reassemble the switch
by: Bill

Yes, evidently you can. There are pages on this site explaining how, by folks that have done it.

For me, nope, not worth the aggro. I just get a new one.

______________________

Same happened to me
by: Jeremy

This happened to me as well. I replaced the regulator because the knob had broken and I got tired of using a screwdriver to adjust it. So I bought new regulator, attached it, and it won’t power back on after that. I hit the little plastic button you did, and it would turn on. How could changing a regulator just break the darn thing? Did you find a solution? Part of me thinks I should just buy a new compressor, but I’d also be out $30 on the new regulator.
